1.Speed: 40-200rpm for all models
2.Digital pannel with speed and time control
3.Working pan size 25X25cm/32X32cm,with max load 5KG
4.Continuous operation and timed operation range 1min-23h59min
5.DC brushless motor, safe, long life and free of maintenance. Operating silent and stable
Digital display Orbital Shaker Technical Data | ||||
Picture | ![]() | ![]() | ![]() | |
Model | OS-20 | OS-20Pro | OS-40Pro | LS-40Pro |
Motor Type | DC motor | Brushlss motor | ||

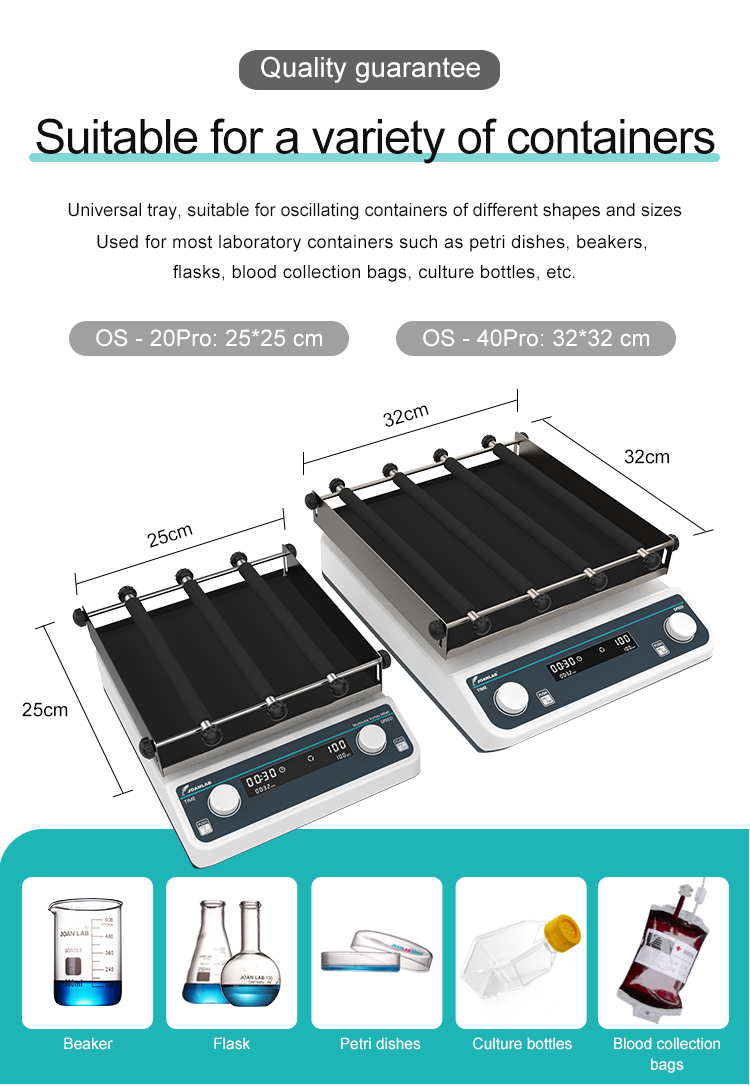

Plate Size | 268*268mm | 250*250mm | 320*320mm | |
Turn | Circular | Linear and reciprocating | ||
Operation Mode | 20mm | Linear and reciprocating 20mm | ||
Max Load | 2kg | 5kg | ||
Speed Range | 40 - 200 rpm | |||
Timing Range | 1min - 19h59min | 1min - 23h59min | ||
Display | LED display | |||
Shell Pction Level | IP21 | |||
Power | 20W | 30W | 45W | |
Voltage | 100-240V, 50/60Hz | |||
Size | 294*348*123mm | 260*355*135mm | 330*435*140mm |
