1.Overload protection
2.Circuit protection
3.Adjustable speed
4.Time setting

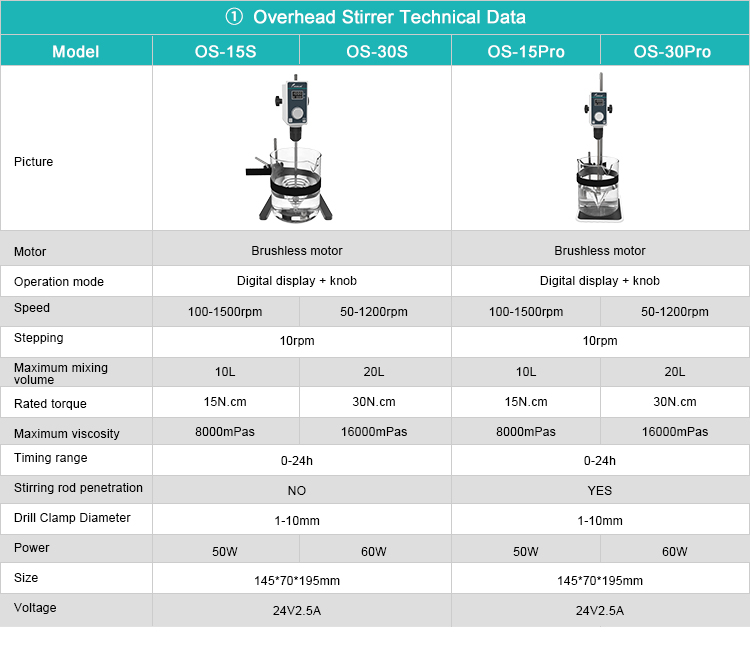

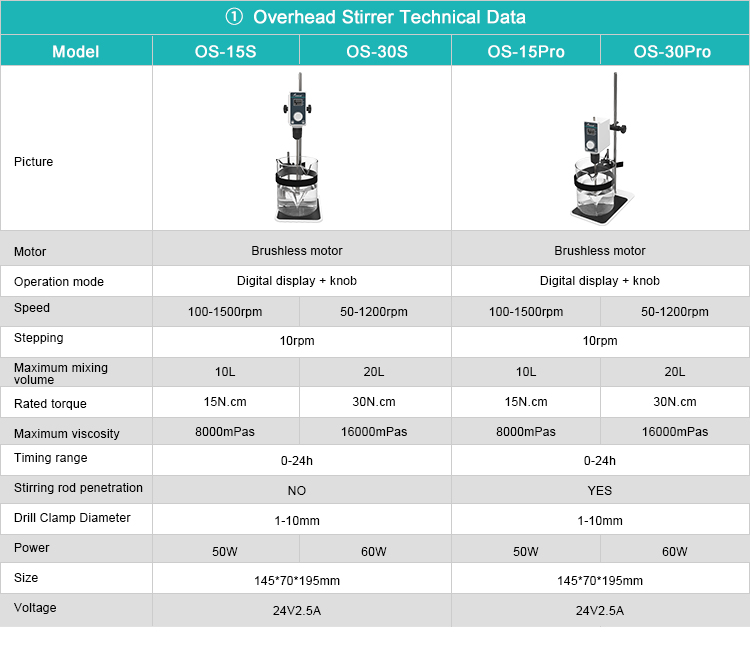

| Overhead Stirrer Technical Data | ||||
| Model | OS-5 | OS-10 | OS-15S | OS-30S |
| Picture |  |  | ||

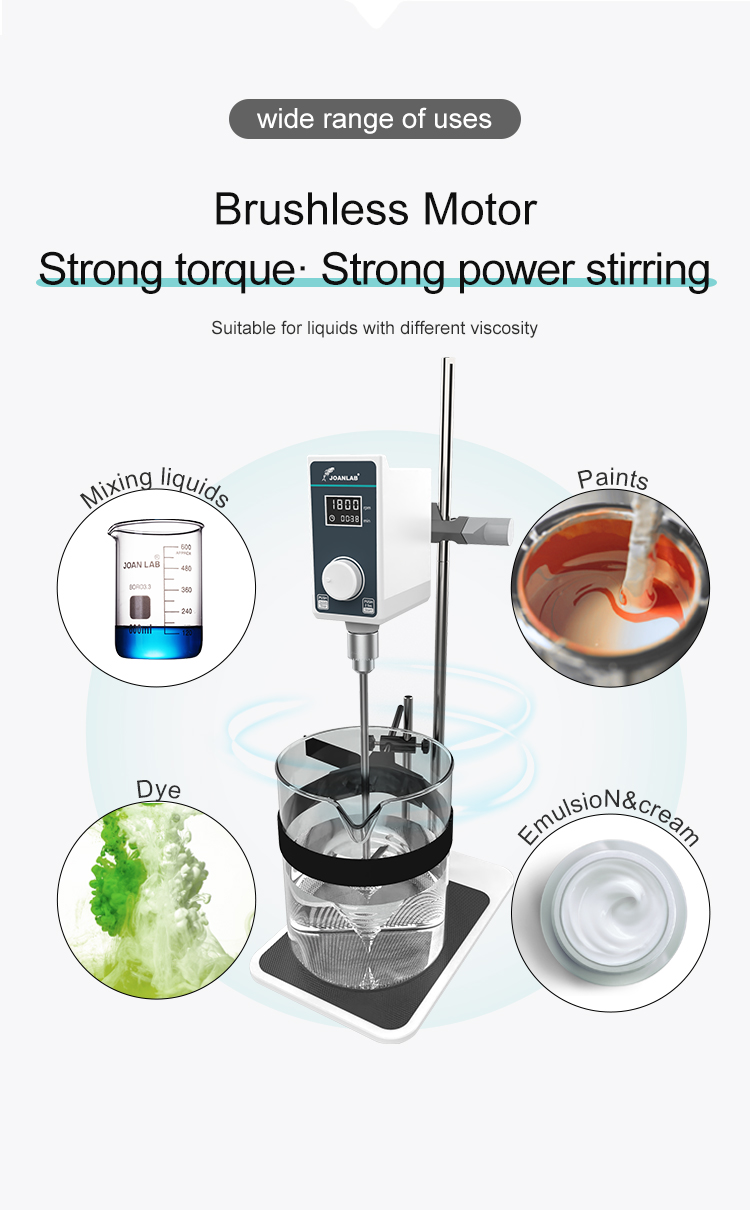

| Motor | Brush Motor | Brushless Motor | ||
| Max amount of stirring(H2O) | 5L | 10L | 10L | 20L |
| RPM | 200-1500rpm | 100-1000rpm | 100-2000 rpm | 50 - 1200 rpm |
| Timing | / | 1min - 23h59min | ||
| Max torque | 10N.cm | 20N.cm | 15 N.cm | 30 N.cm |
| Max viscosity | 5000mPas | 10000mPas | 8000 mPas | 16000 mPas |
| Clamping diameter range of drill chuck | 1 - 10 mm | |||
| Power | 20W | 25W | 30W | 36W |
| Voltage | AC 100-240V | |||
Size | 147*70*195mm | |||
| Weight | 7.7kg | |||
| Optional paddle parameters Technical Data | |||||||||
Pictures |
|  |  |  |  |  | |||
| Paddle type | Four leaves | Three leaves | Plate type stirring paddle | One-word stirring paddle | Three-blades stirring paddle | Cross stirring paddle | |||
leaf diameter (mm) | 60 | 70 | 80 | 70 | 80 | 65 | 65 | 70 | 65 |
Length (mm) | 350 / 500 | 350 | |||||||
Rod diameter (mm) | 8 | ||||||||
