1.digital display for time and speed control is available.
2.Accurate temperature control.
3.Over temperature protection.
4.Strong magnetic power.

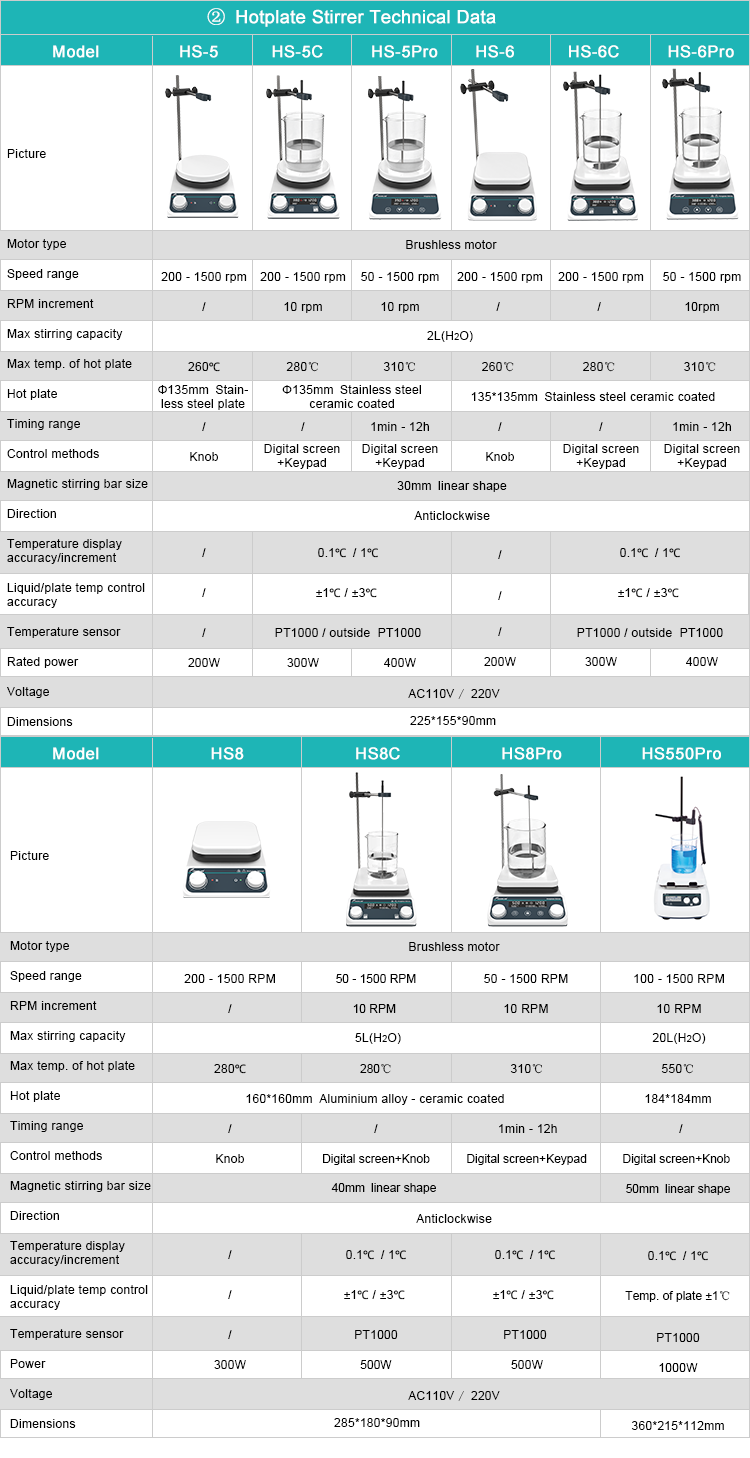

| Joan Lab Hotplate Stirrer Technical Data | ||||
| Model | HS5 | HS5C | HS5Pro | HS550Pro |
| Picture |  |  |  |  |
| Motor type | Brushless Motor | |||
| Speed range | 200-1500rpm | 200-1500rpm | 50-1500rpm | 100-1500rpm |
| RPM Increment | / | 10rpm | ||
| Max strring capcacity | 2L(H2O) | 20L(H2O) | ||
| Max temp. of cpacity | 260℃ | 280℃ | 310℃ | 550℃ |
| Hot plate | φ135mm stainless steel coating | φ148mm glass-ceramic plate | ||
| Timing range | / | / | 1min - 12h | / |
| Control methods | Knob | Digital screen + Knob | Digital screen + Keypad | Digital screen + Knob |
| Magnetic stirring bar size | 30mm linear shape | 50mm linear shape | ||
| Direction | Anticlockwise | |||
Temperaature display accuracy / increment | / | 0.1℃ / 1℃ | ||
| Liquid / plate temp control accuracy | / | ±1℃ / ±3℃ | Temp. of plate ±1℃ | |
| Temperature sensor | / | PT1000 / outside PT1000 | ||
| Rated power | 200W | 300W | 400W | 1000W |
| Voltage | AC220V | |||
| Dimensions | 225*155*90mm | 360*215*112mm | ||
